Description

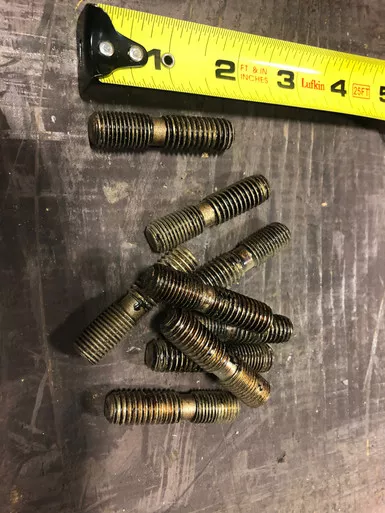

Continuous Thread Stud:
- G244-7767342 Item 1085
- ORD 7767342
- Packed by Chrysler Corp 06/1953
- Mfg Part CO-401879-H
- NSN 5307-00-776-7342
- 10 pack
- Thread Class: 3A Nut Thread
- Thread Pitch Diameters: +0.3989/+0.4004 Inches Stud Thread
- Thread Direction: Right-Hand Stud Thread
- Thread Length: .690 inches minimum not thread
- Thread Length: .940 inches minimum STUD thread
- Overall Length: 1.880 inches nominal
- Thread Quantity per inch: 14 Stud Thread
- Thread Quantity per inch: 20 Nut Thread
- Hardness Rating: 28.0 Rockwell C and 34.0 Rockwell C Maximum
- Nominal Thread Size: .438 inches nut thread
- Nominal Thread Size: .438 inches stud thread
- Surface Finish 32.0 micro inches nut THD
- Surface Finish: 32.0 Microinches Stud THD
- Material: Steel Comp 8640
- Thread Direction: Right-Hand Nut Thread
- Continental Motor
New condition, genuine military issue in the original government packaging.
