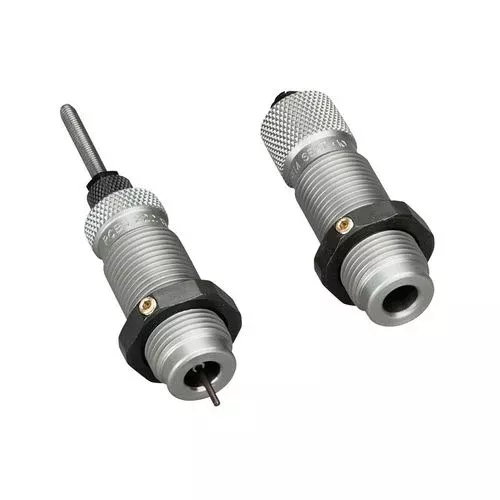

The RCBS .30-06 Springfield Full Length Die Set: Elevating Precision and Performance in Handloading
For the discerning handloader, hunter, or competitive shooter, the quest for superior ammunition accuracy and consistency is a continuous journey. At the heart of this pursuit lies the meticulous process of reloading, and the quality of your dies dictates the ultimate success of your efforts. The RCBS .30-06 Springfield Full Length Die Set (UPC 076683140012) stands as a benchmark for excellence, engineered to empower reloaders with the tools needed to craft custom cartridges that outperform factory ammunition and extend the life of their precious brass.
This comprehensive two-die set is specifically designed for bottleneck cases like the venerable .30-06 Springfield, a cartridge renowned for its versatility, power, and enduring popularity across hunting, target shooting, and military applications. Whether you’re aiming for sub-MOA groups at the range, ensuring a clean ethical harvest in the field, or simply seeking to maximize cost efficiency without compromising quality, this die set provides the foundational precision you need.
The Foundation of Reloading: Understanding the Full-Length Sizer Die
The journey of transforming a fired cartridge case back into a perfectly dimensioned component ready for reuse begins with the Full-Length Sizer Die. This crucial die is more than just a reshaping tool; it’s a precision instrument designed to restore spent brass to SAAMI (Sporting Arms and Ammunition Manufacturers’ Institute) minimum cartridge dimensions. This restoration is paramount for several critical reasons:
- Ensuring Flawless Chambering: After a cartridge is fired, the brass expands to fill the chamber of your firearm. If not properly resized, this expanded brass can lead to difficult chambering, extraction issues, or even prevent the cartridge from seating fully, posing significant safety risks and impacting reliability. The RCBS Full-Length Sizer Die meticulously brings the outside of the case back to its original specifications, ensuring smooth, consistent feeding and ejection in any rifle chambered for .30-06 Springfield. This is especially vital for semi-automatic firearms or bolt-action rifles with tight chambers, where perfect sizing eliminates concerns about functionality.
- Decapping and Neck Expansion: Integrated within the Full-Length Sizer Die is the Expander-Decapping Unit. As the case is pressed into the die, the decapping pin pushes out the spent primer, preparing the primer pocket for a fresh primer. Simultaneously, the expander ball, a precisely sized component, passes through the case neck. This action serves a dual purpose: it expands the neck to the exact internal diameter required to accept a new bullet with appropriate neck tension, and it ensures concentricity, which is vital for bullet alignment and, consequently, for accuracy. Achieving consistent neck tension is a hallmark of high-quality handloads, contributing significantly to uniform bullet pull and predictable powder burn.
- Engineered for Efficiency and Safety: Venting System: RCBS has thoughtfully incorporated vents into the die design. These subtle but critical features prevent issues caused by trapped air and excessive lubricant. When a case is pushed into a die, air can become compressed, potentially leading to a “hydraulic lock” that can damage the case or the die. Similarly, if too much case lubricant is applied, it can become trapped, causing dents or crumpling of the case shoulder. The vents allow both air and excess lube to escape, ensuring smooth operation, protecting your valuable brass, and extending the life of your dies. This attention to detail reflects RCBS’s commitment to user-friendly design and long-term durability.
- Precision Headspace Control: One of the most critical aspects of rifle reloading is managing headspace. Headspace is the distance between the bolt face and the datum line of the chamber, controlling how far a cartridge seats in the chamber. The RCBS Full-Length Sizer Die is engineered to hold headspace to minimum tolerances. This precise control prevents the case body length from changing excessively during the sizing process, which can lead to overworking the brass, reducing its lifespan, and potentially causing case head separation – a dangerous malfunction. By maintaining tight headspace tolerances, this die set promotes brass longevity, ensures safe operation, and contributes directly to the consistency and accuracy of your reloaded ammunition. For rifle shooters, especially those pursuing maximum precision, proper headspace is non-negotiable.
Seating and Securing: The Seater Die with Built-In Roll Crimper
Once the case is prepared, primed, and charged with powder, the final step in ammunition assembly is seating the bullet. The Seater Die with Bullet Seater Plug in this RCBS set handles this critical task with precision, ensuring that the bullet is seated to the correct overall length (OAL) and securely held in place.
- Consistent Bullet Seating: The Seater Die guides the bullet precisely into the case neck, and the adjustable bullet seater plug allows you to fine-tune the seating depth. Consistent seating depth is paramount for accuracy, as variations can alter chamber pressure, muzzle velocity, and barrel harmonics. Whether you’re following a specific load recipe from a reloading manual or experimenting to find the optimal bullet jump for your particular rifle, this die provides the repeatable precision necessary for consistent results. The seater plug is designed to cradle the bullet, preventing deformation and ensuring a straight, concentric seating.
- Integrated Roll Crimper for Enhanced Retention: A standout feature of this RCBS Seater Die is its built-in roll crimper. While not always necessary for all rifle cartridges, especially those used in single-shot or bolt-action rifles where precise neck tension is often sufficient, a roll crimp offers additional bullet retention. This is particularly beneficial for:
- Cartridges used in tubular magazines: Such as lever-action rifles, where recoil can cause bullets to telescope into the case, increasing overall length and potentially leading to dangerous pressure spikes. A roll crimp prevents this forward movement.
- Heavy-recoiling cartridges: Where severe recoil might otherwise cause bullets to shift.
- Hunting ammunition: Where rounds may experience rough handling during transport.
- Ensuring consistent powder burn: A consistent crimp can contribute to more uniform ignition and powder burn, leading to more consistent velocities and improved accuracy. The RCBS design allows you to apply a light, medium, or heavy crimp simultaneously with bullet seating, streamlining the reloading process and enhancing bullet retention when desired.
Why Choose the RCBS .30-06 Springfield Full Length Die Set?
When considering the best reloading tools for your .30-06 Springfield, why do experts and experienced handloaders frequently recommend RCBS? The answer lies in a combination of legacy, engineering, and performance:
- Legacy of Quality and Trust: RCBS has been a cornerstone of the reloading industry for decades, earning a reputation for producing durable, reliable, and precise equipment. Their dies are manufactured from hardened steel, built to withstand countless reloading cycles while maintaining their critical dimensions.
- Unmatched Consistency: The meticulous manufacturing processes and tight tolerances employed by RCBS ensure that each die performs consistently, cycle after cycle. This repeatability is essential for producing high-quality ammunition that delivers predictable results downrange.
- User-Friendly Design: While offering professional-grade precision, RCBS dies are also designed with the user in mind. Their straightforward operation makes them an excellent choice for both seasoned reloaders and those just embarking on their handloading journey.
- Longevity and Durability: Investing in RCBS dies is an investment in tools that will serve you faithfully for many years. Their robust construction resists wear and tear, ensuring long-term performance and accuracy retention.
- Comprehensive
